nROADS® H Beacon
A powerful, long-lasting beacon, most commonly used on large vehicles, with 360-degrees of light and multiple colors for high visibility.
Features

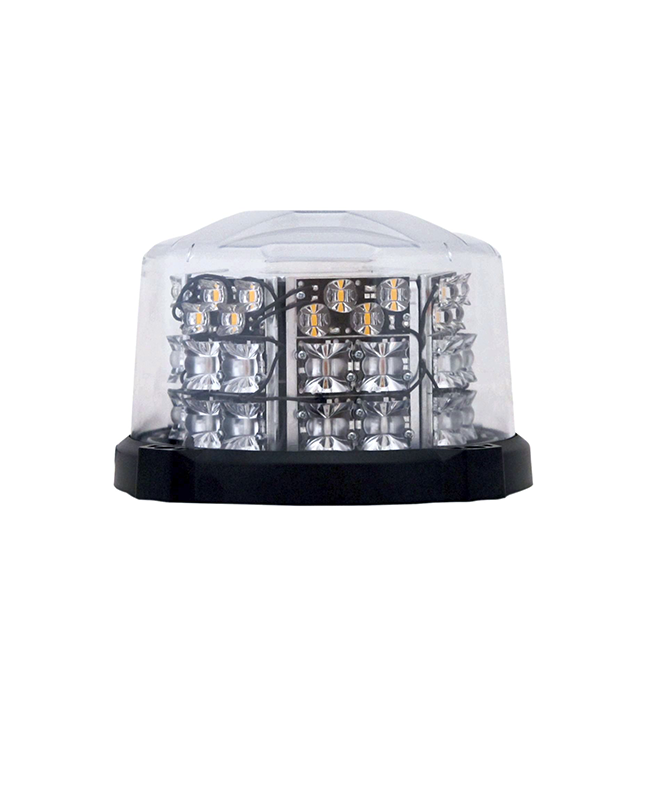

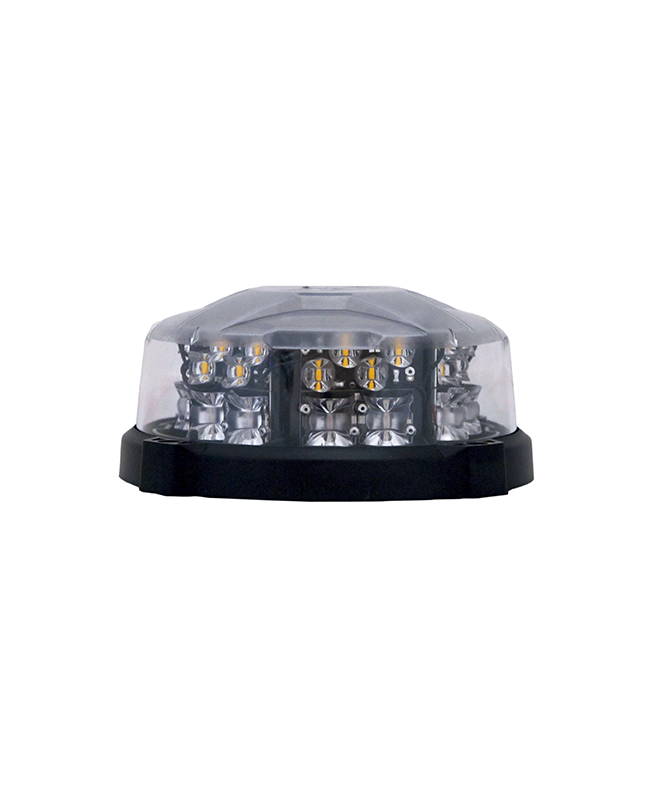

- Available in low (93mm) dome or high (134mm) dome
- Available with single color (12 or 24 LEDs), dual color (24 or 36 LEDs) or tricolor (48 LEDs)
- Two levels of intensity and automatic dimming
- Permanent mounting for high-speed usage and demanding environments
- Consumption in idle mode ~ 1mA
Specifications
Max current draw
3.6 Amp @ 12 VDC
1.8 Amp @ 24 VDC
1.8 Amp @ 24 VDC
Dimensions
Diameter: 219 mm
Height: 96 mm or 134 mm
Height: 96 mm or 134 mm
Mount Type
Permanent mount
LED Options & Count
Single color – 12 LEDs, Dual color – 24 or 36 LEDs, Tricolor - 48 LEDs
Lens Color Options
Clear
Single LED Color Options
Red
Blue
Amber
Dual LED Color Options
Red/Blue
Blue/Amber
Triple LED Color Options
Red/Blue/Amber
