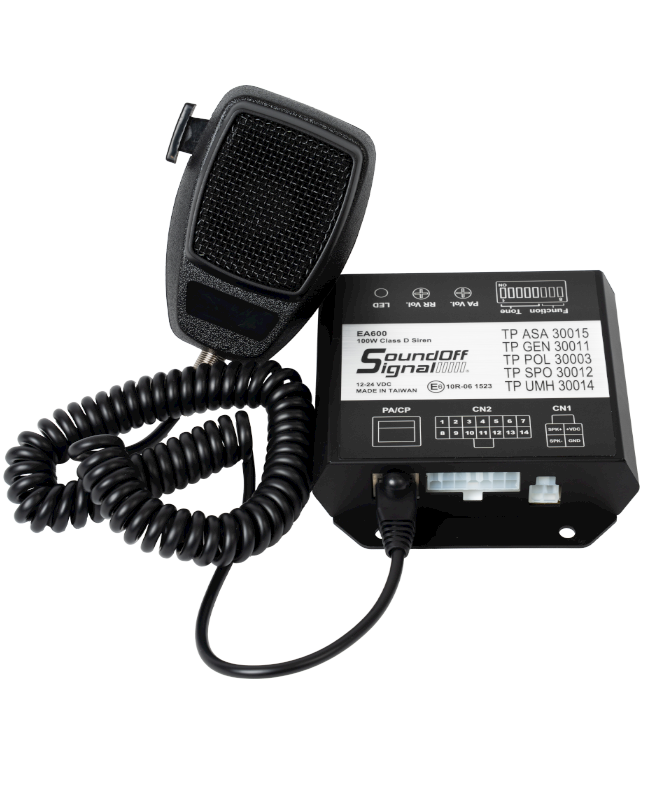

EA600 Siren
Compact and effective siren amplifier to meet your needs
Features
- 29 tones available to fit your needs: Common European tones, Wail, Air Horn, Yelp, Two Tone, Martin HI/LO, Whoop, Piercer
- Compact size, simple to install and use
- Push-to-talk button capability on the PA mic
- PA volume control on siren amplifier
- Compatible with 8Ω (1x 8Ω or 2x 4Ω) and 11Ω speakers
Specifications
Input Current Draw
9 amps @ 13.6 Vdc, 4.5 amps @ 27.2 Vdc
Standby Current Draw
<2mA @12.8Vdc, <3.5mA @ 25.6Vdc
Output Watts
100 Watts
Siren Frequency Range
350Hz to 2000Hz
PA Audio Frequency Range
300Hz to 10,000Hz
Siren Tones
29 siren tones available
Dimensions
Amplifier: 120mm L x 29mm H x 104mm D
PA Mic: 63.5mm L x 94.85mm H x 49.8mm D
PA Mic: 63.5mm L x 94.85mm H x 49.8mm D
Speaker Compatibility
2x 4Ω* 50W Speakers (50EA Speaker) or 1x 11Ω 100W Speaker (100J or 100U)
Certifications
ECE-R10
